Super Focusing Cameras

Defing common sense for cosmetic
inspections; a camera for inspection at an angle

The Super Focusing Camera captures images at an angle, but the whole image is in focus!

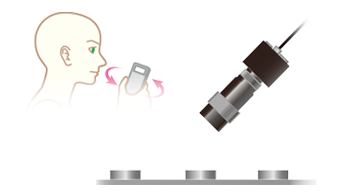

Inspections once possible only by human eyes are now possible by using our Super Focusing Camera

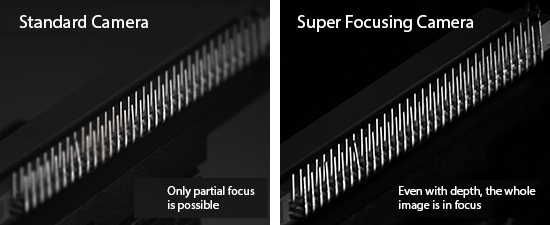

When capturing an image at an angle with a standard camera in the way a visual inspection is conducted, the captured image is only partially in focus and has perspective. It is therefore not suitable for inspection.
The Super Focusing Camera solves this problem.
In addition to realizing high-accuracy inspections, it contributes to the reduction of inspection-site costs.

Target models
VTV-9000ST VTV-9000miniR VTV-9000mini

Three features only possible with the Super Focusing Camera

1. Defects such as scratches or dents can be seen more clearly

Some flaws or surface asperities might be less visible when captured from above. Capturing the image at an angle can make the flaws or surface asperities more visible.


Cast a shadow with a regular
reflection light for higher contrast.

Super Focusing Camera

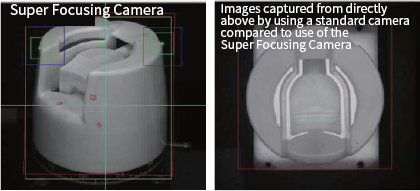

Image captured from
directly above by using a standard camera

2. Sections that are not visible when an image is captured from directly above can now be inspected

Complex shapes might not be inspectable when using a camera from above, but using a camera at an angle can make issues obvious. This makesto the capture of satisfactory images of the area to be inspected possible.

<Terminal inspection of stamping parts>

<Resin mold product chipping inspection>

3. Images can be captured simultaneously from 3 sides

There is no need to prepare the same number of cameras and lightings as the number of inspected sides. Instead, one high-quality image that showing three sides can be captured. As a result, inspections are feasible with less cameras and captured images, and the entire inspection project can be done faster and with reduced costs.

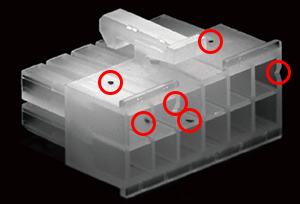

Defects in connector holes may not be shown in images captured by a vertical/horizontal camera. However, the Super Focusing Camera can reliably detect such defects.
from the top
from the side
from the front

Details of stereo inspection

Improved flexibility in machine design

Inspection on all sides possible by rotating → Complicated and expensive mechanism not necessary

Inspection on all sides possible by rotating → Complicated and expensive mechanism not necessary

The Following is a list of Super Focusing Camera applications.

  • Cubic inspections to simultaneously capture images of three sides of molded products
  • TP and width inspections on press-fit terminals
  • Gap inspections of connector mating parts
  • Connector pin tip detection
  • Large molding item inner wall scratch inspections
  • Inspections on integrated resin molding on lead frames
  • Robot alignment
Corner inspection on short shot
BGA/LGA flatness inspection

Hardware Specifications

12MP Monochrome

Model number Load resolution
(pixel)
Image transfer speed External dimensions
(W) x (H) x (D)
Standard mode High-speed mode
モノクロ VTC-R120M0
S-Series
4080 x 3000 67ms
(15fps)
19ms
(54fps)
35 x 35 x 40.7 mm
1.4x1.4x1.6inch

※You can scroll to the side.

*1Up to 4 cameras when connected to a VTV-9000mini.

※You can scroll to the side.

5MP Monochrome/Color

Model Number Load Resolution
(Pixel)
Image Transfer Speed External Dimensions
(W) x (H) x (D)
Standard Mode High-Speed Mode
Monochrome VTC-D050M0
S-Series
2448 x 2048 29ms
(35fps)/
30ms*1
(33fps)
- 35 x 35 x 40.7 mm
1.4x1.4x1.6inch
Color VTC-D050C0
S-series
Monochrome VTC-R050M0
S-Series
2448 x 2048 29ms
(35fps)/
30ms*1
(33fps)
7.6ms
(132fps)
35 x 35 x 40.7 mm
1.4x1.4x1.6inch
Color VTC-R050C0
S-Series

※You can scroll to the side.

*1Up to 4 cameras when connected to a VTV-9000mini.
