Product lineup

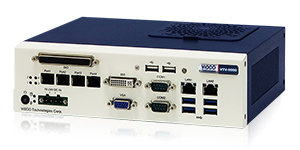

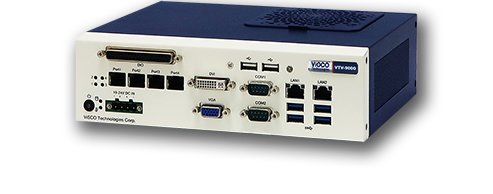

VTV-9000C

Basic compact model
with high performance

Basic model with OS robustness in smaller footprint with originally designed board for use as FA equipment. Camera cable over 5m can be connected.

※Supports connection with ViSCO's proprietary digital cameras.

Hardware specifications

Model number V9KCEPL2-4**
Maximum number of camera connections 4(mixed use of cameras with different pixel counts supported)
External dimensions 230(W)× 175(D)× 70(H)mm
9.1(W)× 6.9(D)× 2.8(H)inch
Weight 2.3kg
Power consumption 220W以下

※You can scroll horizontally.

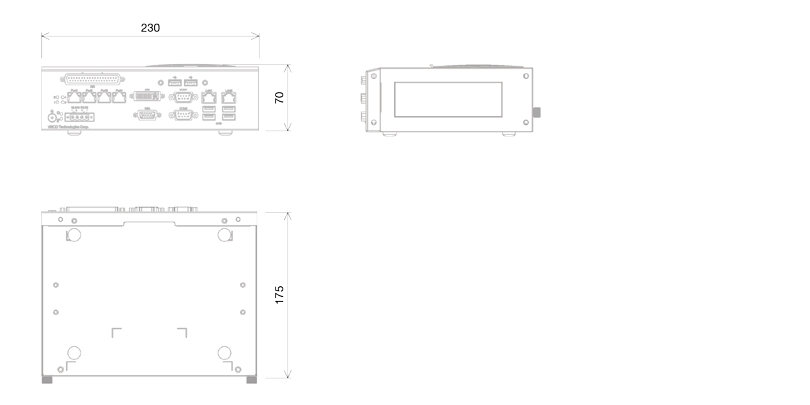

External dimensions

5MP Monochrome/Color

Model number Load resolution
(pixel)
Image transfer speed External dimensions
(W) x (H) x (D)
Monochrome VTC-E050M00-SE 2448x2048 48ms
(21fps)
35x35x53.4mm
1.4x1.4x2.1inch
Color VTC-E050C00-SE 35x35x53.7mm
1.4x1.4x2.1inch

※You can scroll horizontally.

3MP Monochrome/Color

Model number Load resolution
(pixel)
Image transfer speed External dimensions
(W) x (H) x (D)
Monochrome VTC-E030M00-SE 2048x1536 30ms
(33fps)
35x35x53.4mm
1.4x1.4x2.1inch
Color VTC-E030C00-SE 35x35x53.7mm
1.4x1.4x2.1inch

※You can scroll horizontally.

2MP Monochrome/Color

Model number Load resolution
(pixel)
Image transfer speed External dimensions
(W) x (H) x (D)
Monochrome VTC-200EM10-SE 1616x1236 33ms
(30fps)
35x35x55.9mm
1.4x1.4x2.2inch
Color VTC-200EC10-SE

※You can scroll horizontally.

1.6MP Monochrome/Color

Model number Load resolution
(pixel)
Image transfer speed External dimensions
(W) x (H) x (D)
Monochrome VTC-E016M00-SE 1440x1080 14ms
(71fps)
35x35x53.4mm
1.4x1.4x2.1inch
Color VTC-E016C00-SE 35x35x53.7mm
1.4x1.4x2.1inch

※You can scroll horizontally.

0.3MP Monochrome/Color

Model number Load resolution
(pixel)
Image transfer speed External dimensions
(W) x (H) x (D)
Monochrome VTC-030EM10-SE 640x480 10ms
(100fps)
35x35x55.9mm
1.4x1.4x2.2inch
Color VTC-030EC10-SE

※You can scroll horizontally.

All cameras support partial resolution.
VT Digital E cameras are original ViSCO digital cameras.
External dimensions do not include connectors.

VT Digital E camera cables

Product name Model number Connector shape(camera side - unit side)
3m for Robot VTCC-ERJRN-03D RJ with lock - RJ
5m for Robot VTCC-ERJRN-05D RJ with lock - RJ
10m for Robot VTCC-ERJRN-10D RJ with lock - RJ

※You can scroll horizontally.

Frequently Asked Questions

QAbout how much does it cost?
A

The configuration and prices differ depending on the size of the object you want to inspect and the takt time. At ViSCO, we have a diverse lineup of image processing inspection systems, cameras, and other products to respond to the various needs of our customers. For details, please contact us here.

QHow do your products differ from those of other companies?
A

Examples would include our high-precision image processing technology, high-speed processing, and inspection algorithm, which rivals human capabilities.
ViSCO does not simply sell products. We propose visual inspection systems that can actually be used at production sites, including everything from optical system selection and automatic machine advice to after-sales follow-ups, and customers that have introduced our systems are generally satisfied enough to come back to us.
Every day, we strive to develop our image processing technology to bring it even closer to the capabilities of human eyes and satisfy even more customers.

QApproximately what is the minimum size of defects I can detect with your systems?
A

In the case of an optical system consisting of lenses and lighting generally available on the market, the minimum size of defects that can be detected is approximately 3 to 5 μm in diameter. However, this is affected by workpiece conditions, so it is necessary to confirm the actual precision and performance based on a sample test.

QDo I need any special knowledge to introduce an image processing inspection system?
A

ViSCO's image processing inspection systems have a reputation for being easy to use and set up even for first-time users.
We have a training program (optional) for customers who purchase our products, and we provide support to facilitate a smooth introduction.

Q I am considering purchasing a system, but are on-site tests available?
A

Yes.
We can have a sales representative visit you and conduct a test, or we can loan you the necessary machinery and materials free of charge. For details, please feel free to contact us here.

QCan you conduct a demonstration?
A

Yes.
We can have a sales representative visit you, or we can conduct a demonstration at our Tokyo head office or Osaka business office.
