VTV-9000U

Low cost model with a wide
variety of inspection tools

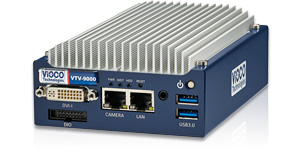

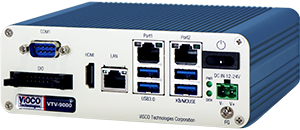

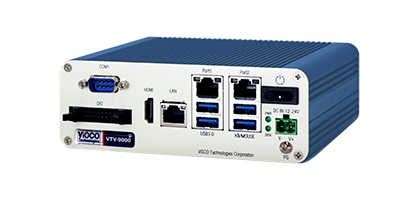

The smallest machine vision system in the VTV-9000 series. This ultra-small unit contains all the high-performance inspection tools made by ViSCO. This contributes to drastic cost reduction with the simple configuration of one unit = one camera while maintaining robustness as an FA machine.

※Supports connection with ViSCO's proprietary digital cameras.

Hardware specifications

Model number V9KUEPL4-2MV0
Maximum number of camera connections 2
External dimensions 150(W)× 116(D)× 52(H)mm
5.9(W)× 4.5(D)× 2.0(H)inch
Weight 0.9kg
Power consumption 60Wor less

※You can scroll horizontally.

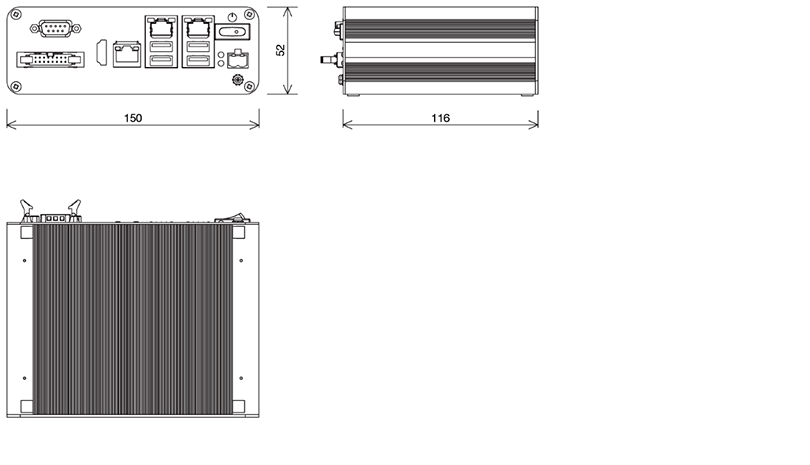

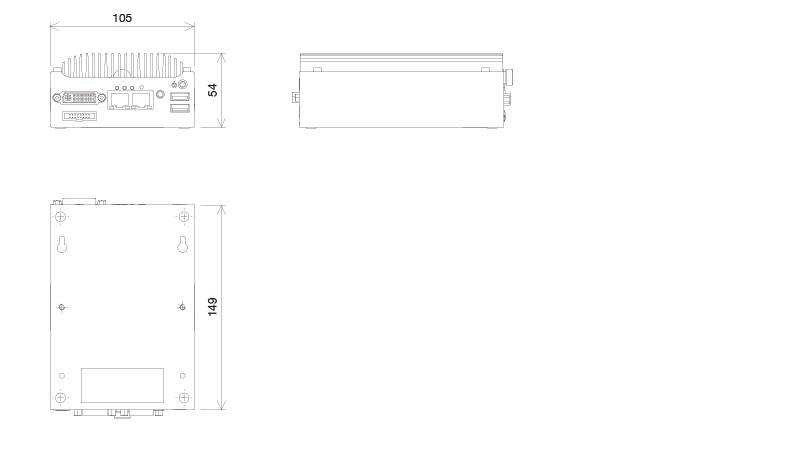

External dimensions

VT Digital E cameras

5MP Monochrome/Color

Model number Load resolution
(pixel)
Image transfer speed External dimensions
(W) x (H) x (D)
Monochrome VTC-E050M00-SE 2448x2048 48ms
(21fps)
35x35x53.4mm
1.4x1.4x2.1inch
Color VTC-E050C00-SE 35x35x53.7mm
1.4x1.4x2.1inch
Monochrome VTC-E050M00-SN 29x29x53mm
1.1x1.1x2.0inch
Color VTC-E050C00-SN

※You can scroll horizontally.

3MP Monochrome/Color

Model number Load resolution
(pixel)
Image transfer speed External dimensions
(W) x (H) x (D)
Monochrome VTC-E030M00-SE 2048x1536 30ms
(33fps)
35x35x53.4mm
1.4x1.4x2.1inch
Color VTC-E030C00-SE 35x35x53.7mm
1.4x1.4x2.1inch
Monochrome VTC-E030M00-SN 29ms
(35fps)
29x29x53mm
1.1x1.1x2.0inch
Color VTC-E030C00-SN

※You can scroll horizontally.

2MP Monochrome/Color

Model number Load resolution
(pixel)
Image transfer speed External dimensions
(W) x (H) x (D)
Monochrome VTC-200EM10-SE 1616x1236 33ms
(30fps)
35x35x55.9mm
1.4x1.4x2.2inch
Color VTC-200EC10-SE

※You can scroll horizontally.

1.6MP Monochrome/Color

Model number Load resolution
(pixel)
Image transfer speed External dimensions
(W) x (H) x (D)
Monochrome VTC-E016M00-SE 1440x1080 14ms
(71fps)
35x35x53.4mm
1.4x1.4x2.1inch
Color VTC-E016C00-SE 35x35x53.7mm
1.4x1.4x2.1inch
Monochrome VTC-E016M00-SN 14ms
(69fps)
29 x 29 x 53mm
1.1x1.1x2.0inch
Color VTC-E016C00-SN
Monochrome VTC-E016M00-SN
(Binning Mode)
720x540 6.5ms
(153fps)

※You can scroll horizontally.

All cameras support partial resolution.
VT Digital E cameras are original ViSCO digital cameras.
External dimensions do not include connectors.

VT Digital E camera cable

Product name Model number Connector shape(camera side - unit side)
3m for Robot VTCC-ERJRN-03D RJ with lock - RJ
5m for Robot VTCC-ERJRN-05D RJ with lock - RJ
10m for Robot VTCC-ERJRN-10D RJ with lock - RJ
3m for Robot VTCC-ERJRD-03H RJ with lock - RJ
5m for Robot VTCC-ERJRD-05H RJ with lock - RJ
3m for Robot VTCC-ERJRU-03H RJ with lock - RJ
5m for Robot VTCC-ERJRU-05H RJ with lock - RJ

※You can scroll horizontally.

System configuration

Connection with External Devices

VT Digital E Camera・Camera Cable
Camera Model No. Camera Type Camera cable Model No. Camera cable Type
VTC-E050M00-SE 5MP, Monochrome VTCC-ERJRN-03D
VTCC-ERJRN-05D
VTCC-ERJRN-10D
VTCC-ERJRD-03H
VTCC-ERJRD-05H
straight/ 3m
straight/ 5m
straight/ 10m
L-shaped/DOWN/3m
L-shaped/DOWN/5m
VTC-E050M00-SE 5MP, Color
VTC-E030M00-SE 3MP, Monochrome
VTC-E030M00-SE 3MP, Color
VTC-E016M00-SE 1.6MP, Monochrome
VTC-E016M00-SE 1.6MP, Color
VTC-E050M00-SN 5MP, Monochrome VTCC-ERJRN-03D
VTCC-ERJRN-05D
VTCC-ERJRN-10D
VTCC-ERJRU-03H
VTCC-ERJRU-05H
straight/ 3m
straight/ 5m
straight/ 10m
L-shaped/UP/3m
L-shaped/UP/5m
VTC-E050C00-SN 5MP, Color
VTC-E030M00-SN 3MP, Monochrome
VTC-E030C00-SN 3MP, Color
VTC-E016M00-SN 1.6MP, Monochrome
VTC-E016C00-SN 1.6MP, Color

※You can scroll horizontally.

Flash Light Controllers・Hardware trigger cable
Flash Light Controllers Model No. Flash Light Controllers Type Hardware trigger cable Model No. Hardware trigger cable Type
VTVFCV-0648-00
VTVFCV-1248-02
VTVFC-V-06-01
6 lighting connections
12 lighting connections, with link function
6 lighting connections
VTTC-E040-16E
VTTC-EA040-01E
VTTC-EB040-01E
1.6m
Breakout cable 0.1m
Breakout H/W trigger cable 1.5m
VTTC-N040-16E
VTTC-NA040-01E
VTTC-NB040-01E
1.6m
Breakout cable 0.1m
Breakout H/W trigger cable 1.5m

※You can scroll horizontally.

I/O cable
I/O cable Model No. I/O cable Type
VTIO-U16SN050L I/O cable 3m 16 pin with connector on one side
VTIO-U16SN050L I/O cable 5m 16 pin with connector on one side

※You can scroll horizontally.

Frequently Asked Questions

QAbout how much does it cost?
A

The configuration and prices differ depending on the size of the object you want to inspect and the takt time. At ViSCO, we have a diverse lineup of image processing inspection systems, cameras, and other products to respond to the various needs of our customers. For details, please contact us here.

QHow do your products differ from those of other companies?
A

Examples would include our high-precision image processing technology, high-speed processing, and inspection algorithm, which rivals human capabilities.
ViSCO does not simply sell products. We propose visual inspection systems that can actually be used at production sites, including everything from optical system selection and automatic machine advice to after-sales follow-ups, and customers that have introduced our systems are generally satisfied enough to come back to us.
Every day, we strive to develop our image processing technology to bring it even closer to the capabilities of human eyes and satisfy even more customers.

QApproximately what is the minimum size of defects I can detect with your systems?
A

In the case of an optical system consisting of lenses and lighting generally available on the market, the minimum size of defects that can be detected is approximately 3 to 5 μm in diameter. However, this is affected by workpiece conditions, so it is necessary to confirm the actual precision and performance based on a sample test.

QDo I need any special knowledge to introduce an image processing inspection system?
A

ViSCO's image processing inspection systems have a reputation for being easy to use and set up even for first-time users.
We have a training program (optional) for customers who purchase our products, and we provide support to facilitate a smooth introduction.

Q I am considering purchasing a system, but are on-site tests available?
A

Yes.
We can have a sales representative visit you and conduct a test, or we can loan you the necessary machinery and materials free of charge. For details, please feel free to contact us here.

QCan you conduct a demonstration?
A

Yes.
We can have a sales representative visit you, or we can conduct a demonstration at our Tokyo head office or Osaka business office.
