VTV-9000F

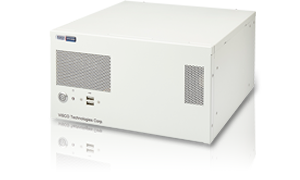

VTV-9000ST has offered the fastest processing in the series so far; the new high-end model, "F", offers even faster performance; with downsizing the footprint down to approximately 45% of the dimension of ST, it offers advantages such as smaller footprint and trimmed weight.

〈Model lineup〉
 2-camera setup
 4-camera setup
 2-camera connection supporting high-speed camera

ViSCO original VT Digital camera can be connected.

VT Digital cameras

29M Monochrome

  Model number Load
Resolution
(pixels)
Image Transfer Speed External dimension
(W) x (H) x (D)
Standard modeHigh-speed mode
Monochrome VTC-29MCM00-NV 6576x4384 200ms
(5fps)
- 68x68x104mm
2.7x2.7x4.1inch

25M Monochrome

  Model number Load
Resolution
(pixels)
Image Transfer Speed External dimension
(W) x (H) x (D)
Standard modeHigh-speed mode
Monochrome VTC-25MCM00-NV 5120x5120 - 40ms
(25fps)
68x68x80mm
2.7x2.7x3.1inch

12M Monochrome/Color

  Model number Load
Resolution
(pixels)
Image Transfer Speed External dimension
(W) x (H) x (D)
Standard modeHigh-speed mode
Monochrome VTC-R120M00-SE 4080x3000 67ms
(15fps)
19ms
(53fps)
35x35x40.7mm
1.4x1.4x1.6inch
Color VTC-R120C00-SE

9M Monochrome/Color

  Model number Load
Resolution
(pixels)
Image Transfer Speed External dimension
(W) x (H) x (D)
Standard modeHigh-speed mode
Monochrome VTC-R090M00-SE 4080x2160 50ms
(20fps)
14ms
(73fps)
35x35x40.7mm
1.4x1.4x1.6inch
Color VTC-R090C00-SE

5M Monochrome/Color

  Model number Load
Resolution
(pixels)
Image Transfer Speed External dimension
(W) x (H) x (D)
Standard modeHigh-speed mode
Monochrome VTC-R050M00-SE 2448x2048 29ms
(35fps)
7.6ms
(132fps)
35x35x40.7mm
1.4×1.4×1.6inch
Color VTC-R050C00-SE
Monochrome VTC-D050M0A-SE 2448x2048 29ms
(35fps)
- 35x35x40.7mm
1.4×1.4×1.6inch
Color VTC-D050C0A-SE
Monochrome VTC-500PM00-JC 2544x2048 21ms
(47fps)
9.4ms
(107fps)
29x29x52mm
1.1x1.1x2.0inch
Color VTC-500PC00-JC
Monochrome VTC-500PM10-SE 2592x1944 71ms
(14fps)
- 35x35x35mm
1.4x1.4x1.4inch
Color VTC-500PC10-SE

4M Monochrome

  Model number Load
Resolution
(pixels)
Image Transfer Speed External dimension
(W) x (H) x (D)
Standard modeHigh-speed mode
Monochrome VTC-400PM00-VI 2048x2048 26ms
(38fps)
6.7ms
(150fps)
29x29x55mm
1.1x1.1x2.2inch

3M Monochrome/Color

  Model number Load
Resolution
(pixels)
Image Transfer Speed External dimension
(W) x (H) x (D)
Standard modeHigh-speed mode
Monochrome VTC-D030M00-SE 2048×1536 19ms
(52fps)
- 35x35x40.7mm
1.4x1.4x1.6inch
Color VTC-D030C00-SE

2M Monochrome/Color

  Model number Load
Resolution
(pixels)
Image Transfer Speed External dimension
(W) x (H) x (D)
Standard modeHigh-speed mode
Monochrome VTC-200PM00-VI 2048x1088 14ms
(70fps)
3.6ms
(280fps)
29x29x55mm
1.1x1.1x2.2inch
Color VTC-200PC00-VI
Monochrome VTC-200PM01-SE 1616x1236 33ms
(30fps)
- 35x35x46.5mm
1.1x1.1x1.8inch
Color VTC-200PC01-SE
Monochrome VTC-200CM00-NV 2048x1088 14ms
(74fps)
6.7ms
(150fps)
68x68x54mm
2.7x2.7x2.1inch
Color VTC-200CC00-NV

0.8M Monochrome/Color

  Model number Load
Resolution
(pixels)
Image Transfer Speed External dimension
(W) x (H) x (D)
Standard modeHigh-speed mode
Monochrome VTC-080PM00-SE 1024x768 23ms
(44fps)
- 28x28x40.5mm
1.1x1.1x1.6inch
Color VTC-080PC00-SE

0.3M Monochrome/Color

  Model number Load
Resolution
(pixels)
Image Transfer Speed External dimension
(W) x (H) x (D)
Standard modeHigh-speed mode
Monochrome VTC-030WM00-SE 640x480 4.2ms
(240fps)
- 35x35x48.2mm
1.4x1.4x1.9inch
Color VTC-030WC00-SE
Monochrome VTC-030PM00-SE 640x480 11ms
(90fps)
- 28x28x40.5mm
1.1x1.1x1.6inch
Color VTC-030PC00-SE

All cameras support partial.
VT Digital camera is ViSCO-original digital camera.
External dimension does not contain connector(s).

VT Digital camera cables

Product name Model number Connector shape
(camera side - controller side)
Shape
3m for Robot VTCC-3SSRN003H SDR-SDR Straight
VTCC-3MSRN003H MDR-SDR
5m for Robot VTCC-3SSRN005H SDR-SDR Straight
VTCC-3MSRN005H MDR-SDR
3m for Robot L-shaped VTCC-3SSRU003H SDR-SDR L-shaped UP
5m for Robot L-shaped VTCC-3SSRU005H SDR-SDR L-shaped UP
3m for Robot L-shaped VTCC-3SSRD003H SDR-SDR L-shaped DOWN
5m for Robot L-shaped VTCC-3SSRD005H SDR-SDR L-shaped DOWN
3m for high-speed camera for Robot VTCC-4SSRN103H SDR-SDR Straight
3m for high-speed camera for Robot VTCC-4MSRN003H MDR-SDR Straight

Hardware Specifications

Model
number
V9KFDPK
1-2**
V9KFDPQ
1-4**
V9KFDPT
1-2**
Camera
mode
Standard
(mixed use of cameras with different pixel count supported)
High-speed
(mixed use of standard/high-speed cameras with different pixel count supported)
Maximum
camera
connection
number
2 4 2
External
dimension
280(W)×295(D)×150(H)mm
11.0(W)×11.6(D)×5.9(H)inch
Weight 6.5kg
Power
consumption
<220W

Device Drawings

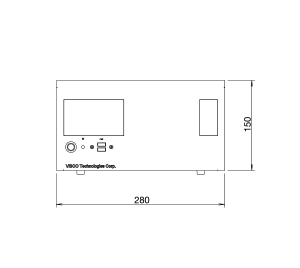

Front

Front

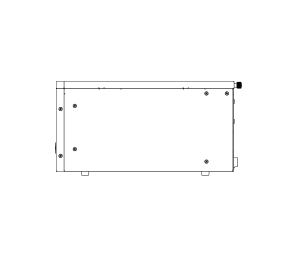

Side

Side

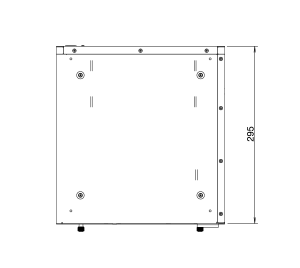

Bottom

Bottom
