By connecting a Lighting Controller to the VTV-9000 series models, LED lighting switching on/switching off/modulation can be changed to suit image acquirement timing, so control on a real-time basis is possible.

The VTVLC series Lighting Controller are connected to the VTV-9000 series models via USB. Two types of Lighting Controller are offered - one with four channels, and one with twelve channels - so that selection can be made to suit the number of LED lighting connections.

Lighting Controller VTVLC Series Lighting Controller VTVLC Series Lighting Controller VTVLC Series

Device Drawings

4 channels( VTVLCV-0412-**、VTVLCV-0424-** )

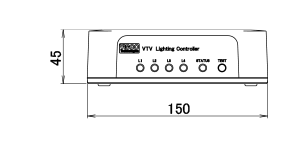

Front

Front

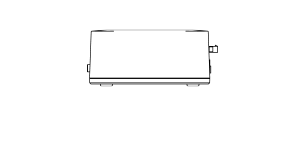

Side

Side

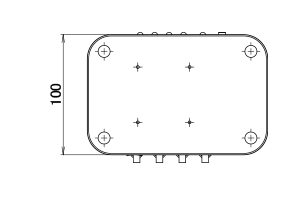

Bottom

Bottom

12 channels( VTVLC-V-12-** )

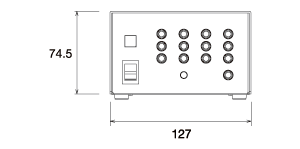

Front

Front

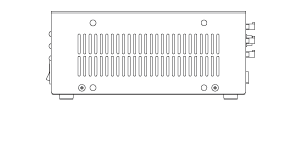

Side

Side

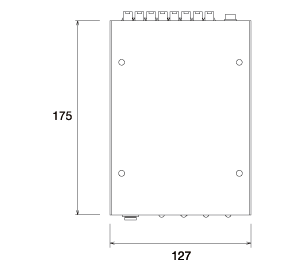

Bottom

Bottom

Hardware Specifications

4 channels 12 channels
Model number VTVLCV-0412-** VTVLCV-0424-** VTVLC-V-12-**
Maximum No. of Connected lighting connections 4 4 12
Output voltage DC12V DC24V DC24V
Output capacity 25W 50W 150W
External Dimensions 150(W)x100(D)x45(H)
mm
5.9(W)x3.9(D)x1.8(H)
inch*1
150(W)x100(D)x45(H)
mm
5.9(W)x3.9(D)x1.8(H)
inch*1
127(W)x175(D)x74.5(H)
mm
5(W)x6.9(D)x2.9(H)
inch*1
Weight 270g 270g 750g
Power Consumption 30W or Less 60W or Less 180W or Less

*1Values do not include protruding parts
