Connecting Flash Light Controller to VTV-9000 series enables easy use of electronic flash and hardware trigger input function.

Device Drawings

6 channels( VTVFC-V-06-** )

Front

Front

Side

Side

Bottom

Bottom

6 channels( VTVFCV-0648-** )

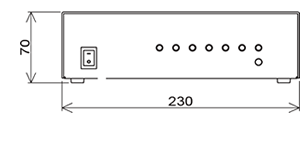

Front

Front

Side

Side

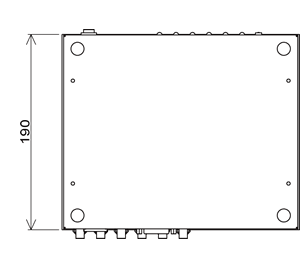

Bottom

Bottom

12 channels( VTVFCV-1248-** )

Front

Front

Side

Side

Bottom

Bottom

Hardware Specifications

6 channels 12 channels
Model number VTVFC-V-06-** VTVFCV-0648-** VTVFCV-1248-**
Maximum No. of
Connected
lighting
connections
6 6 12
Input voltage DC24V DC24V DC24V
Output rating When only O.D is selected: output current max 3.75A.
When only 24V is selected: max power output 156W.
When O.D+24V are mixed: output current max 3.25A and output power max 156W
48V O.D: output current per one channel max 10A. Total output current max 50A 48V O.D: output current per one channel max 10A. Total output current max 50A
Link Function - - Up to 10 units
External Dimensions 127(W)× 175(D)× 179.4(H)mm
/5(W)×6.9(D)× 3.1(H)inch
230(W)× 190(D)× 70(H)mm
/9.1(W)× 7.5(D)× 2.6(H)inch
230(W)× 190(D)× 70(H)mm
/ 9.1(W)×7.5(D)× 2.8(H)inch
Weight 775g 1230g 1320g
Power Consumption 160W or Less 300W 300W

*Values do not include protruding parts
