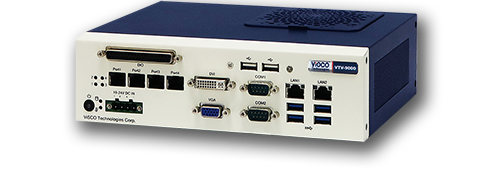

Basic model with OS robustness in smaller footprint with originally designed board for use as FA equipment. Camera cable over 5m can be connected.
※Supports connection with ViSCO's proprietary digital cameras.
Model number | V9KCEPL2-4** |
---|---|
Maximum number of camera connections | 4(mixed use of cameras with different pixel counts supported) |

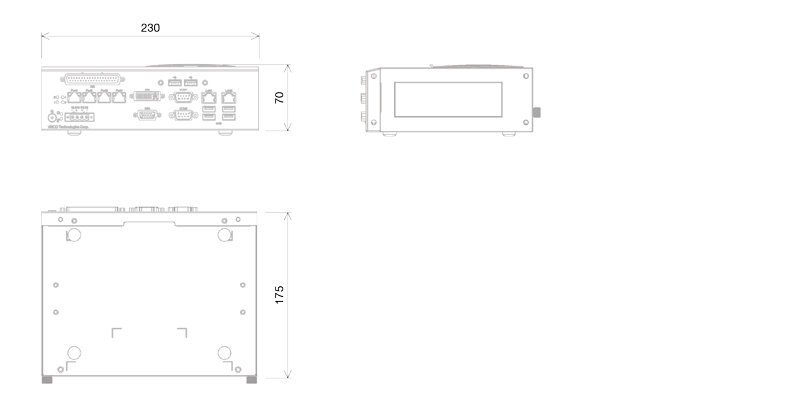

External dimensions | 230(W)× 175(D)× 70(H)mm 9.1(W)× 6.9(D)× 2.8(H)inch |
Weight | 2.3kg |
Power consumption | 220W以下 |
※You can scroll horizontally.
Model number | Load resolution
(pixel) |
Image transfer speed | External dimensions (W) x (H) x (D) |
|
---|---|---|---|---|
![]() |
VTC-E050M00-SE | 2448x2048 | 48ms (21fps) |
35x35x53.4mm 1.4x1.4x2.1inch |
![]() |
VTC-E050C00-SE | 35x35x53.7mm 1.4x1.4x2.1inch |
※You can scroll horizontally.
Model number | Load resolution
(pixel) |
Image transfer speed | External dimensions (W) x (H) x (D) |
|
---|---|---|---|---|
![]() |
VTC-E030M00-SE | 2048x1536 | 30ms (33fps) |
35x35x53.4mm 1.4x1.4x2.1inch |
![]() |
VTC-E030C00-SE | 35x35x53.7mm 1.4x1.4x2.1inch |
※You can scroll horizontally.
Model number | Load resolution
(pixel) |
Image transfer speed | External dimensions (W) x (H) x (D) |
|
---|---|---|---|---|
![]() |
VTC-200EM10-SE | 1616x1236 | 33ms (30fps) |
35x35x55.9mm 1.4x1.4x2.2inch |
![]() |
VTC-200EC10-SE |
※You can scroll horizontally.
Model number | Load resolution
(pixel) |
Image transfer speed | External dimensions (W) x (H) x (D) |
|
---|---|---|---|---|
![]() |
VTC-E016M00-SE | 1440x1080 | 14ms (71fps) |
35x35x53.4mm 1.4x1.4x2.1inch |
![]() |
VTC-E016C00-SE | 35x35x53.7mm 1.4x1.4x2.1inch |
※You can scroll horizontally.
Model number | Load resolution
(pixel) |
Image transfer speed | External dimensions (W) x (H) x (D) |
|
---|---|---|---|---|
![]() |
VTC-030EM10-SE | 640x480 | 10ms (100fps) |
35x35x55.9mm 1.4x1.4x2.2inch |
![]() |
VTC-030EC10-SE |
※You can scroll horizontally.
All cameras support partial resolution.
VT Digital E cameras are original ViSCO digital cameras.
External dimensions do not include connectors.
Product name | Model number | Connector shape(camera side - unit side) |
---|---|---|
3m for Robot | VTCC-ERJRN-03D | RJ with lock - RJ |
5m for Robot | VTCC-ERJRN-05D | RJ with lock - RJ |
10m for Robot | VTCC-ERJRN-10D | RJ with lock - RJ |
※You can scroll horizontally.
The configuration and prices differ depending on the size of the object you want to inspect and the takt time. At ViSCO, we have a diverse lineup of image processing inspection systems, cameras, and other products to respond to the various needs of our customers. For details, please contact us here.
Examples would include our high-precision image processing technology, high-speed processing, and inspection algorithm, which rivals human capabilities.
ViSCO does not simply sell products. We propose visual inspection systems that can actually be used at production sites, including everything from optical system selection and automatic machine advice to after-sales follow-ups, and customers that have introduced our systems are generally satisfied enough to come back to us.
Every day, we strive to develop our image processing technology to bring it even closer to the capabilities of human eyes and satisfy even more customers.
In the case of an optical system consisting of lenses and lighting generally available on the market, the minimum size of defects that can be detected is approximately 3 to 5 μm in diameter. However, this is affected by workpiece conditions, so it is necessary to confirm the actual precision and performance based on a sample test.
ViSCO's image processing inspection systems have a reputation for being easy to use and set up even for first-time users.
We have a training program (optional) for customers who purchase our products, and we provide support to facilitate a smooth introduction.
Yes.
We can have a sales representative visit you and conduct a test, or we can loan you the necessary machinery and materials free of charge. For details, please feel free to contact us here.
Yes.
We can have a sales representative visit you, or we can conduct a demonstration at our Tokyo head office or Osaka business office.
We are an expert group in the field of visual inspections and image processing inspections. We are not just a manufacturer. Instead, we are a visual inspection and image processing inspection system manufacturer that combines knowledge of and experience related to image processing algorithms, optical technology, electronics, and machinery in order to provide comprehensive consulting as a development engineering company.
