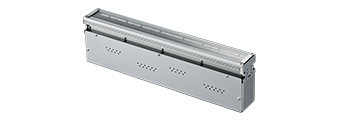

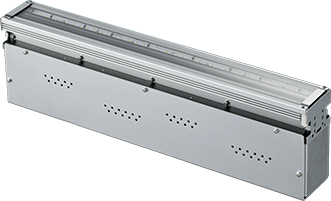

ViSCO's Contact Image Sensor (CIS) captures large workpieces as a single image.
While operating on a principle similar to a line scan camera, the contact-type sensor with a rod lens array produces images with minimal distortion.
Even for large targets that suffer from edge blur or require image stitching with area cameras, the CIS captures a clear single image.
Unlike conventional line scan cameras, no focus adjustment or specialized expertise is required.
Focus and lighting are pre-adjusted in a simple unit, eliminating the need for fine tuning.
The contact design minimizes the working distance.
The installation footprint is kept compact.

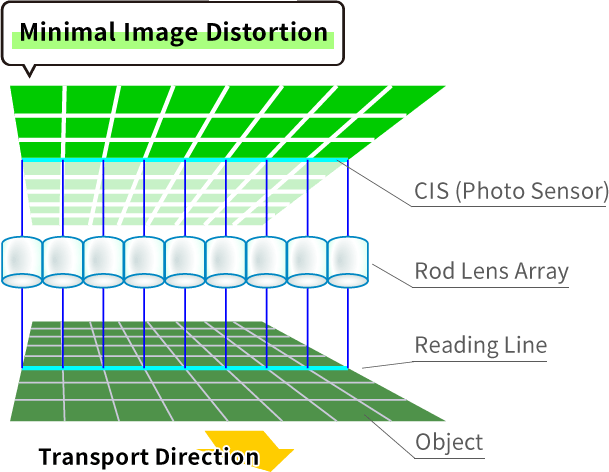

A rod lens array consists of multiple lenses arranged in a single row.
Because the sensor and lenses are in contact, aberrations between the center and edges--common in area and line cameras--do not occur, enabling uniform, distortion-free images.
CIS
Rod Lens Array

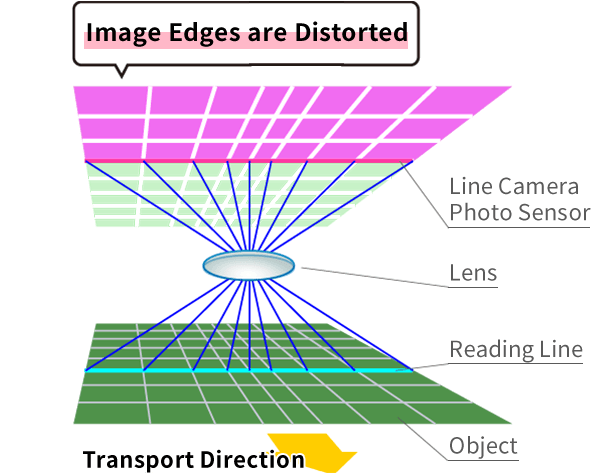

Line Scan Camera
With Non-Telecentric Lens
CIS
Area Camera
Rod Lens Array
With Non-Telecentric Lens
| Short | Inspection Time | Long |
|---|---|---|
| Clear / No Distortion | Clear / No Distortion | Distorted |
| Not Required | Image Stitching | Required |

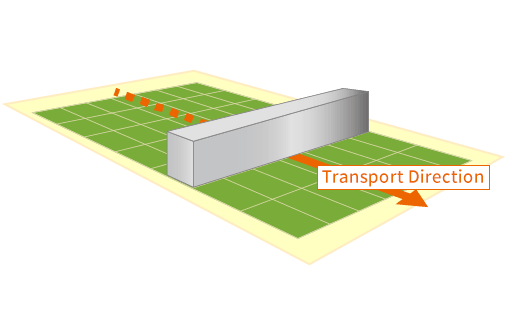

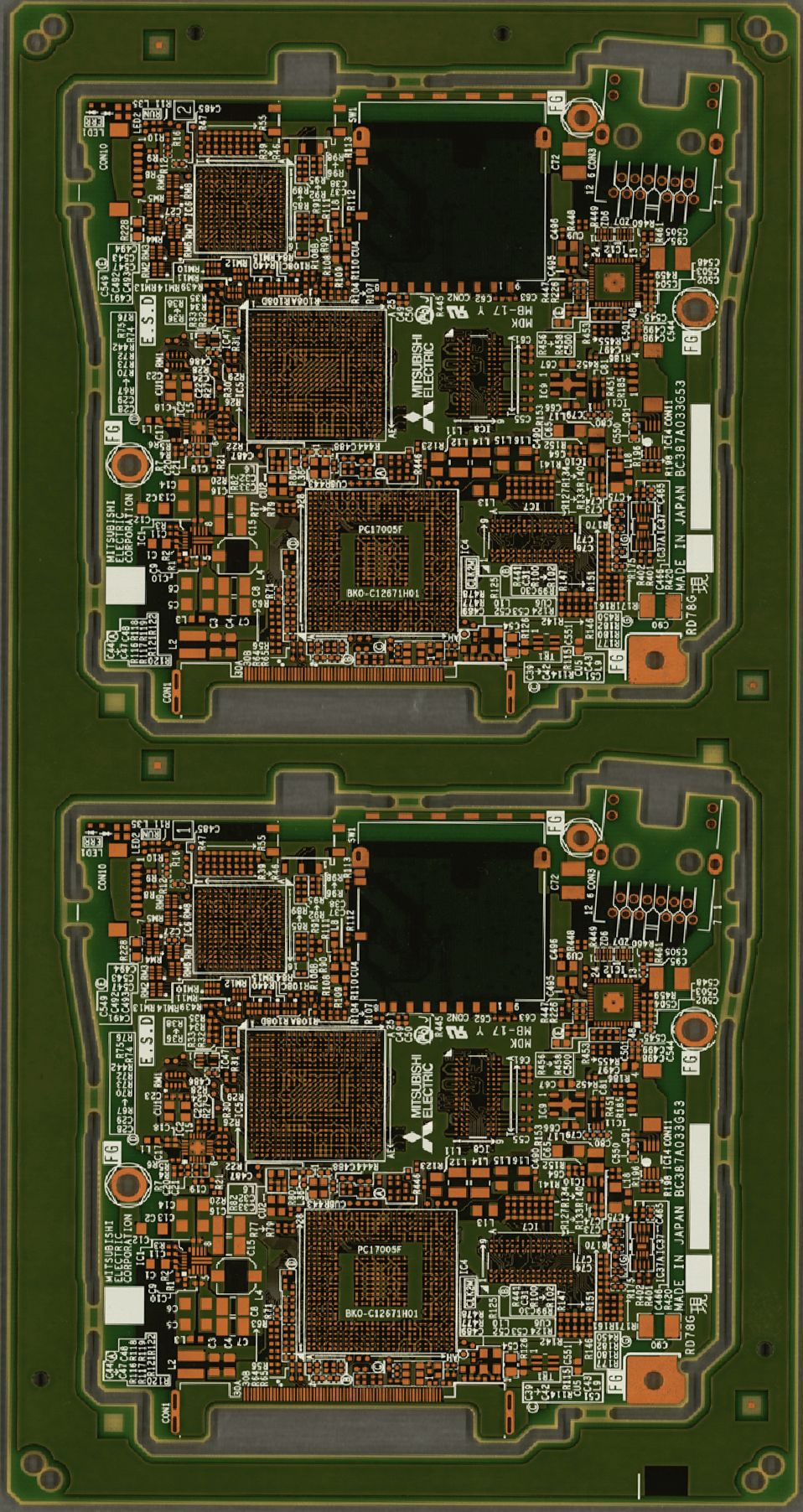

CIS completes imaging in a single capture.

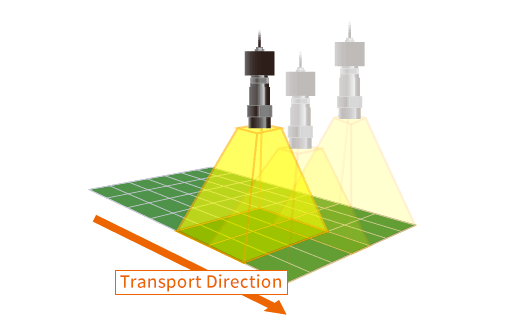

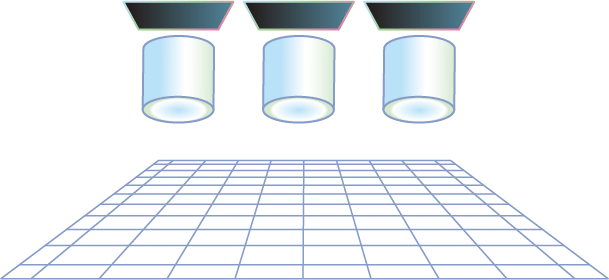

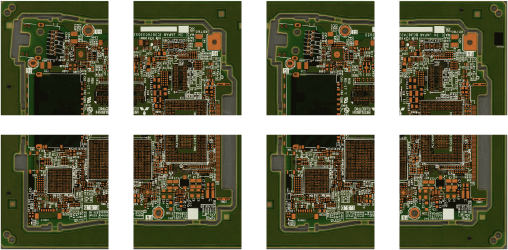

Area cameras require multiple captures, and inspection cannot be performed without image stitching.
※You can scroll to the side.

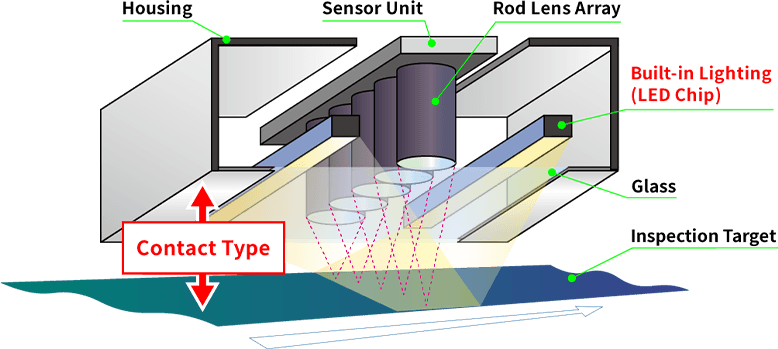

The working distance (between the lens and object) is fixed, eliminating the need for focus adjustment.
The integrated light source comes with preset lighting positions, allowing imaging simply by mounting it to the system.
Because the object and lens unit are nearly in contact, the entire inspection system remains compact.
Fixed focal length and built-in lighting minimize setup effort.

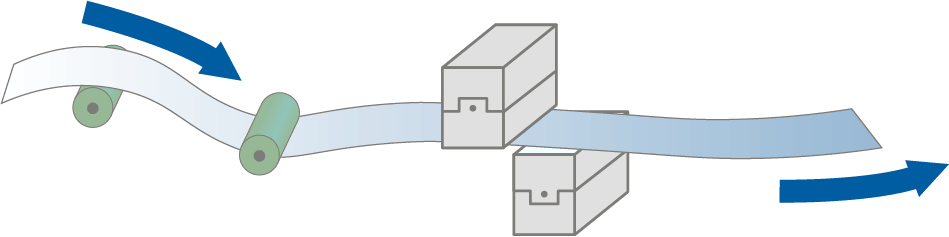

Supports Simultaneous Front and Back Imaging

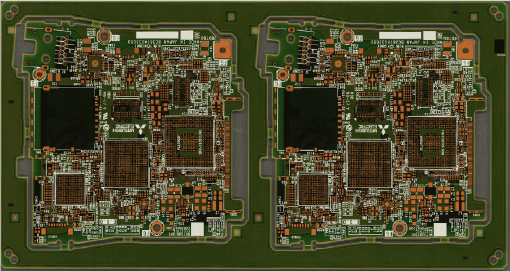

Assembled PCB
Lead Frame
Metal Plate
Screen Printing
※You can scroll to the side.
| 800dpi | ||||
|---|---|---|---|---|
| Product Model / Housing Model | KD6R367CX2 | KD6R587CX2 | ||
| Monochrome / Color | Monochrome | Color | Monochrome | Color |
| Maximum Imaging Area Inspection Area | 367mm × 1376mm | 367mm × 458mm | 587.2mm × 1376mm | 587.2mm × 458mm |
| Inspection Length Scan Length | 32768pix | 10922pix | 32768pix | 10922pix |
| Inspection Width Line Width | 8672pix | 13872pix | ||
| Maximum Transport Speed (m/sec) | 2.1 | 2.1 | ||
| WD / Depth of Field | 12mm・±1mm | 12mm・±1mm | ||
| Connector | DIN（×4） | DIN（×4） | ||
| Connection Mode | Quad | Quad | ||
| External Dimensions (mm) | 434.1 × 64 × 120.1 | 654.1 × 64 × 120.1 | ||
| Weight | 2.9kg | 4.2kg | ||
| Maximum Current Consumption (Power) | 4.8A (115.2W) | 7.0A (168W) *Two Power Supplies Required | ||
※You can scroll to the side.
| 1200dpi | ||
|---|---|---|
| Product Model / Housing Model | KD12R365CX2 | |
| Monochrome / Color | Monochrome | |
| Maximum Imaging Area Inspection Area | 365.7 mm × 688 mm | |
| Inspection Length Scan Length | 32768 pix | |
| Inspection Width Line Width | 17280 pix | |
| Maximum Transport Speed (m/sec) | 1.06 | |
| WD / Depth of Field | 12mm・±1mm | |
| Connector | DIN（×4） | |
| Connection Mode | Quad | |
| External Dimensions (mm) | 434.1 × 64 × 120.1 | |
| Weight | 2.9kg | |
| Maximum Current Consumption (Power) | 4.8A (115.2W) | |
※You can scroll to the side.

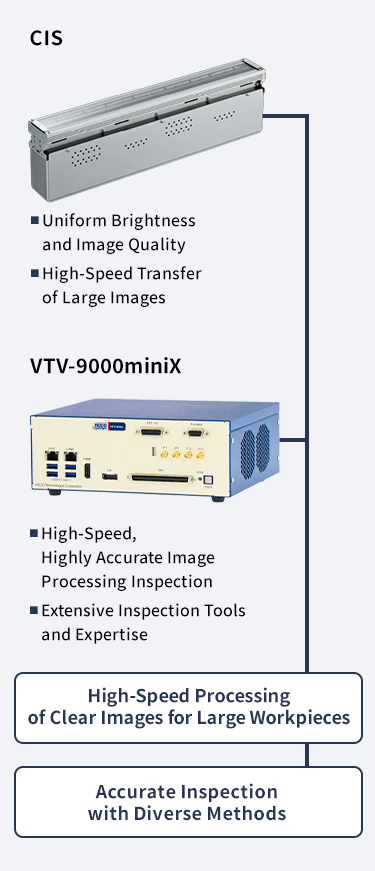

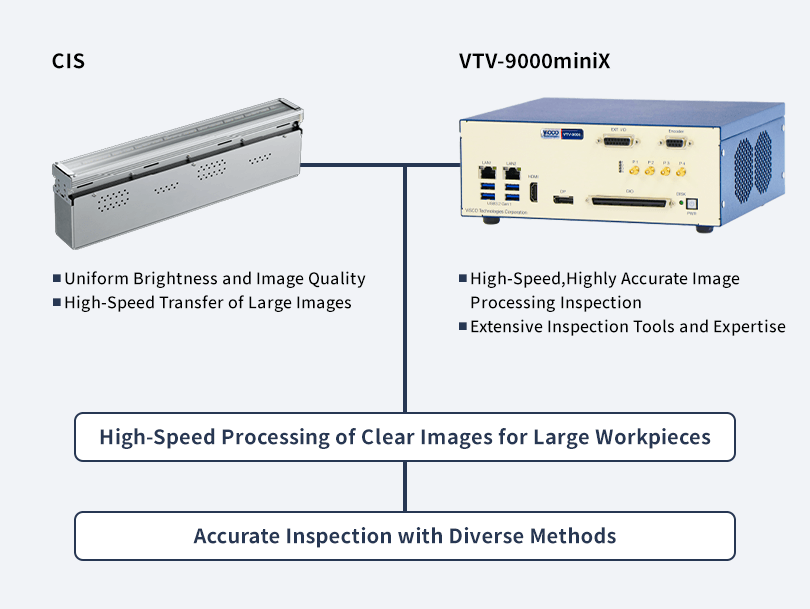

Four cables are required to connect the CIS to the VTV-9000miniX.
| Cable Model | VTCC-7DFRN005H | TCC-7DFRN010H |
|---|---|---|
| Length | 5m | 10m |
| Connector Shape (Straight Type) | DIN - MicroBNC | DIN - MicroBNC |
※You can scroll to the side.
