From cameras supporting 3.6ms (2M pixels) to high speed cameras of 4.2ms (0.3M pixels), to 25M pixel and 29M pixel high pixel cameras, we o er the industry’s widest selection of cameras.

Only ViSCO offers this much variation

For ultra high-resolution inspection 29M For inspection requiring very fine detection or of large-size parts.
For high-speed processing & high-resolution inspection 12M Suitable for cosmetic inspection that requires high-speed processing for a large part.
Suitable for cosmetic inspection that requires high-speed processing 5M For multiple inspections with changes in lighting and for inspections of merged images
Suitable for horizontally long part 2M For inspection of horizontally long parts such as connectors

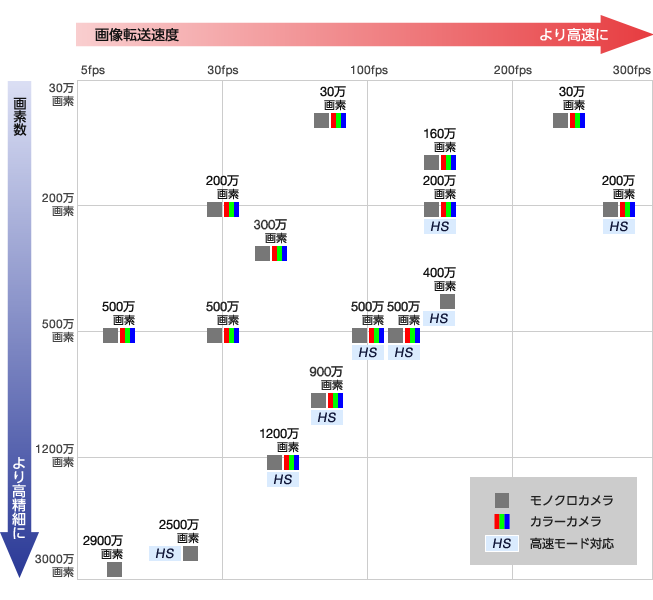

Extensive camera variation from high-speed to high-resolution

0.3M Monochrome/Color 90fps(11ms) 0.3M Monochrome/Color 240fps(4.2ms) 2M Monochrome/Color 30fps(33ms) 2M Monochrome/Color 150fps(6.7ms) 2M Monochrome/Color 280fps(3.6ms) 3M Monochrome/Color 52fps(19ms) 4M Monochrome 150fps(6.7ms) 5M Monochrome/Color 14fps(71ms) 5M Monochrome/Color 35fps(29ms) 5M Monochrome/Color 107fps(9.4ms) 5M Monochrome/Color 132fps(7.6ms) 9M Monochrome/Color 73fps(14ms) 12M Monochrome/Color 53fps(19ms) 25M Monochrome 25fps(40ms) 29M Monochrome 5fps(200ms) 1.6M Monochrome 156fps(6.4ms)

Go to page top

VT Digital Camera

Model:
 VTV-9000F, VTV-9000ST, VTV-9000mini
Supports high speed model:
 VTV-9000F Up to 2 high-speed camera connections
 VTV-9000ST Up to 2 high-speed camera connections, Up to 4 high-speed camera connections
 VTV-9000miniR

VT Digital Camera VT Digital Camera

29M Monochrome

  Model number Load
Resolution
(pixels)
Image Transfer Speed External Dimensions
(W) x (H) x (D)
Standard modeHigh-speed mode
Monochrome VTC-29MCM00-NV 6576x4384 200ms
(5fps)
- 68x68x104mm
2.7x2.7x4.1inch

25M Monochrome

  Model number Load
Resolution
(pixels)
Image Transfer Speed External Dimensions
(W) x (H) x (D)
Standard modeHigh-speed mode
Monochrome VTC-25MCM00-NV 5120x5120 - 40ms
(25fps)
68x68x80mm
2.7x2.7x3.1inch

12M Monochrome/Color

  Model number Load
Resolution
(pixels)
Image Transfer Speed External Dimensions
(W) x (H) x (D)
Standard modeHigh-speed mode
Monochrome VTC-R120M00-SE 4080x3000 67ms
(15fps)
19ms
(53fps)
35x35x40.7mm
1.4x1.4x1.6inch
Color VTC-R120C00-SE

*1 When connected to VTV-9000mini Up to 4 camera connections

Go to page top

9M Monochrome/Color

  Model number Load
Resolution
(pixels)
Image Transfer Speed External Dimensions
(W) x (H) x (D)
Standard modeHigh-speed mode
Monochrome VTC-R090M00-SE 4080x2160 50ms
(20fps)
14ms
(73fps)
35x35x40.7mm
1.4x1.4x1.6inch
Color VTC-R090C00-SE

*1 When connected to VTV-9000mini Up to 4 camera connections

Go to page top

5M Monochrome/Color

  Model number Load
Resolution
(pixels)
Image Transfer Speed External Dimensions
(W) x (H) x (D)
Standard modeHigh-speed mode
Monochrome VTC-R050M00-SE 2448x2048 29ms
(35fps)
7.6ms
(132fps)
35x35x40.7mm
1.4×1.4×1.6inch
Color VTC-R050C00-SE
Monochrome VTC-D050M0A-SE 2448x2048 29ms
(35fps)
- 35x35x40.7mm
1.4×1.4×1.6inch
Color VTC-D050C0A-SE
Monochrome VTC-500PM00-JC 2544x2048 21ms
(47fps)
9.4ms
(107fps)
29x29x52mm
1.1x1.1x2.0inch
Color VTC-500PC00-JC
Monochrome VTC-500PM10-SE 2592x1944 71ms
(14fps)
- 35x35x35mm
1.4x1.4x1.4inch
Color VTC-500PC10-SE

*1 When connected to VTV-9000mini Up to 4 camera connections

4M Monochrome

  Model number Load
Resolution
(pixels)
Image Transfer Speed External Dimensions
(W) x (H) x (D)
Standard modeHigh-speed mode
Monochrome VTC-400PM00-VI 2048x2048 26ms
(38fps)
6.7ms
(150fps)
29x29x55mm
1.1x1.1x2.2inch

Go to page top

3M Monochrome/Color

  Model number Load
Resolution
(pixels)
Image Transfer Speed External Dimensions
(W) x (H) x (D)
Standard modeHigh-speed mode
Monochrome VTC-D030M00-SE 2048×1536 19ms
(52fps)
- 35x35x40.7mm
1.4x1.4x1.6inch
Color VTC-D030C00-SE

2M Monochrome/Color

  Model number Load
Resolution
(pixels)
Image Transfer Speed External Dimensions
(W) x (H) x (D)
Standard modeHigh-speed mode
Monochrome VTC-200PM00-VI 2048x1088 14ms
(70fps)
3.6ms
(280fps)
29x29x55mm
1.1x1.1x2.2inch
Color VTC-200PC00-VI
Monochrome VTC-200PM01-SE 1616x1236 33ms
(30fps)
- 35x35x46.5mm
1.1x1.1x1.8inch
Color VTC-200PC01-SE
Monochrome VTC-200CM00-NV 2048x1088 14ms
(74fps)
6.7ms
(150fps)
68x68x54mm
2.7x2.7x2.1inch
Color VTC-200CC00-NV

1.6M Monochrome/Color

  Model number Load
Resolution
(pixels)
Image Transfer Speed External Dimensions
(W) x (H) x (D)
Standard modeHigh-speed mode
Monochrome VTC-D016M00-SE 1440x1080 6.4ms
(156fps)
- 28x28x40mm
Color VTC-D016C00-SE

0.3M Monochrome/Color

  Model number Load
Resolution
(pixels)
Image Transfer Speed External Dimensions
(W) x (H) x (D)
Standard modeHigh-speed mode
Monochrome VTC-030WM00-SE 640x480 4.2ms
(240fps)
- 35x35x48.2mm
1.4x1.4x1.9inch
Color VTC-030WC00-SE
Monochrome VTC-030PM01-SE 640x480 11ms
(90fps)
- 28x28x40.5mm
1.1x1.1x1.6inch
Color VTC-030PC01-SE

All cameras support partial.
VT Digital camera is ViSCO-original digital camera.
External dimension does not contain connector(s).


Go to page top

VT Digital E Camera

Model:VTV-9000C, VTV-9000U

VT Digital E Camera

5M Monochrome/Color

  Model number Load Resolution
(pixels)
Image Transfer Speed External Dimensions
(W) x (H) x (D)
Monochrome VTC-E050M00-SE 2448x2048 48ms
(21fps)
35x35x53.4mm
1.4x1.4x2.1inch
Color VTC-E050C00-SE 35x35x53.7mm
1.4x1.4x2.1inch

3M Monochrome/Color

  Model number Load Resolution
(pixels)
Image Transfer Speed External Dimensions
(W) x (H) x (D)
Monochrome VTC-E030M00-SE 2048x1536 30ms
(33fps)
35x35x53.4mm
1.4x1.4x2.1inch
Color VTC-E030C00-SE 35x35x53.7mm
1.4x1.4x2.1inch

2M Monochrome/Color

  Model number Load Resolution
(pixels)
Image Transfer Speed External Dimensions
(W) x (H) x (D)
Monochrome VTC-200EM10-SE 1616x1236 33ms
(30fps)
35x35x55.9mm
1.4x1.4x2.2inch
Color VTC-200EC10-SE
Monochrome VTC-200EM20-SE 2048x1088 23ms
(44fps)
35x35x55.9mm
1.4x1.4x2.2inch
Color VTC-200EC20-SE

0.3M Monochrome/Color

  Model number Load Resolution
(pixels)
Image Transfer Speed External Dimensions
(W) x (H) x (D)
Monochrome VTC-030EM10-SE 640x480 10ms
(100fps)
35x35x55.9mm
1.4x1.4x2.2inch
Color VTC-030EC10-SE

All cameras support partial.
VT Digital E camera is ViSCO-original digital camera.
External dimension does not contain connector(s).
